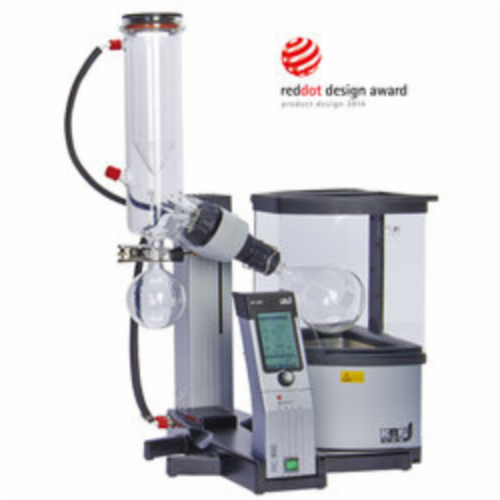

RC 900 Rotary Evaporator, Fluid
- Item#: B7712012-Each
- MPN: RC900LUAU | Manufacturer: KNF Neuberger
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/Each
- Availability: Register or login for Availability Price
-
List Price:
- Qty:
Central remote control unit for all functions. Fast and easy flask exchange. Automatic lift up of flask in case of power outage. Operating display of heating bath.
| Altitude of Installation (Max.) | : | 2000 m above sea level |
| Batteries | : | 4 x AA 1.2 V 2300 mAh; quick charge |
| Battery Service Life | : | Up to 12 hours |
| Charging Time | : | ~ 7 hours |
| Connections on Tower (Coolant line material) | : | Brass/Galvanized |
| Connections on Tower (Vacuum line material) | : | PVDF, Stainless Steel |
| Coolant-coated Surface | : | 1230 cm³ |
| Dimensions (W x D x H) | : | 48.7 x 44.7 x 82.3 mm |
| Fitting Seal (Coolant line material) | : | Silicone |
| Fitting Seal | : | Silicone |
| Fitting on Condenser (Vacuum line material) | : | PP |
| Fittings on Condenser | : | PP |
| Frequency | : | 50-60Hz |
| Glass Parts | : | Borosilicate glass |
| Heating Bath Temperature | : | 20-180°C |
| Heating Output | : | 1300W |
| Inner Connections (Vacuum line material) | : | PTFE, PVDF, Stainless Steel |
| Internal Connections (Coolant line material) | : | Norprene®, PA, stainless steel |
| Length of Stroke | : | 150 mm |
| Lifting Speed | : | 38 mm/s |
| Nominal Voltage | : | 100-127V, 200-240V |
| Operating Current (Max.) | : | 100-127V: 13A, 200-240V: 6.5A |
| Permissible Pressure | : | 43 psi |
| Permissible Temperature | : | -15°C to + 20°C |
| Plugs Seal | : | PTFE-coated |
| Power Supply | : | Through integrated batteries or included power supply. |
| Protection Class | : | IP20 |
| Refilling Valve's Fitting | : | PP |
| Rotational Speed of Evaporation Flask | : | 25-250 (1/min) |
| Size of Evaporation Flask | : | 50-3000 mL |
| Total Weight | : | 20 lbs |
| Tubing (Vacuum line material) | : | Norprene® |
| Tubing | : | Norprene® |
| Vacuum, Coolant, and Refill Connections | : | GL14 |
| Vapor Tube Seal | : | PTFE compound |
| Watt Consumption (Max.) | : | 1500W |
| Wireless Range | : | approx. 50 m without obstacles |
