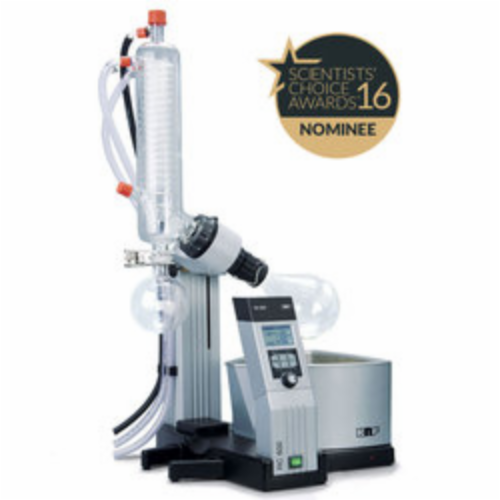

RC 600 Rotary Evaporator, Fluid
- Item#: B7712010-Each
- MPN: RC600LUAU | Manufacturer: KNF Neuberger
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/Each
- Availability: Register or login for Availability Price
-
List Price:
- Qty:
Central control unit for all functions. Fast and easy flask exchange. Automatic lift up of flask in case of power outage. Operating display of heating bath.
| Coolant-coated Surface | : | 1230 cm² |
| Dimensions (W x D x H) | : | 48.7x45.3x82.3 cm) |
| Evaporation Flask Rotation Speed | : | 25-280 per min. |
| Fitting Seal (Coolant line material) | : | Silicone |
| Fitting Seal | : | Silicone |
| Fitting on Condenser (Coolant line material) | : | PP |
| Fitting on Condenser (Vacuum line material) | : | PP |
| Frequency | : | 50-60Hz |
| Glass Parts | : | Borosilicate glass |
| Heating Bath Temperature | : | 20-180°C |
| Heating Output | : | 1300W |
| Indicated Parameters | : | Rotation speed, temperature, lift |
| Length of Stroke | : | 150 mm |
| Lifting Speed | : | 38 mm/s |
| Max. Altitude of Installation | : | 2000 m above sea level |
| Nominal Voltage | : | 100-127V, 200-240V |
| Operating Current (Max.) | : | 100-127V: 13A, 200-240V: 6.5A |
| Permissible Pressure | : | 43 psi |
| Permissible Temperature | : | -15 to +20°C |
| Plugs Seal | : | PTFE-coated |
| Protection Class | : | IP20 |
| Refilling Valve's Fitting | : | PP |
| Size of Evaporation Flask | : | 50-3000mL |
| Total Weight | : | 20 lbs |
| Type of Display | : | LCD black/white |
| USB Connection | : | USB Type B |
| Vacuum and Refil Connections | : | GL14 |
| Vapor Tube Seal | : | PTFE-compound |
| Watt Consumption (Max.) | : | 1500W |
