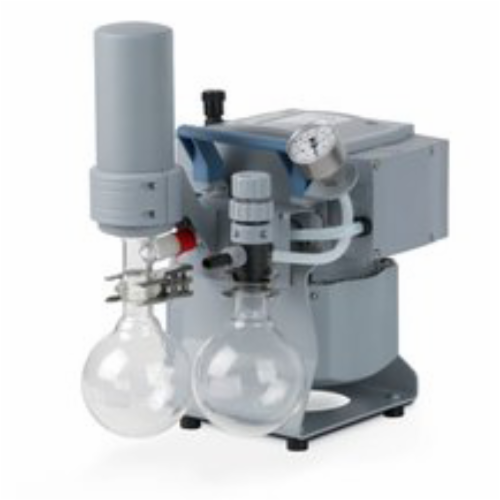

Chemistry Pumping Unit PC 101 Nt
- Item#: B7712503-Each
- MPN: 20733003 | Manufacturer: BrandTech
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/Each
- Availability: Register or login for Availability Price
-
List Price:
- Qty:
Outstanding chemical resistance and superior vapor tolerance. High performance even at low vacuum levels. Optimized vacuum even with gas ballast for condensate purge. Excellent environmental friendliness due to efficient solvent recovery. Manual vacuum control, analog vacuum display.
| # of Heads/Stages | : | 2/2 |
| ATEX Conformity (only 230V) | : | II 3/- G IIC T3 X internal Atm. Only |
| Ambient Temperature (Operation) | : | 10-40°C |
| Ambient Temperature (Storage) | : | -10-60°C |
| Back Pressure (Max.) | : | 1.1 bar |
| Coolant Connection | : | 2 x hose nozzle DZ 6-8mm |
| Degree of Protection | : | IP 40 |
| Dimensions (LxWxH) | : | 32.6 x 24.3 x 40.2 cm |
| Inlet Connection | : | Hose Nozzle 8-10 mm |
| Max. Pumping Speed at 50/60 Hz | : | 1.2/1.4 cfm |
| Max. Pumping Speed at 50/60Hz | : | 2.0/2.3 m3/h |
| NRTL Certification | : | Canada and the USA |
| Noise Level at 50 Hz, typ. | : | 45 dBA |
| Outlet Connection | : | Hose Nozzle DN 8-10mm |
| Rated Motor Power | : | 0.18 kW |
| Rated Motor Speed | : | 1500/1800 min-1 |
| Ultimate Vacuum w/ Gas Ballast | : | 12 mbar/ 9 torr |
| Ultimate Vacuum | : | 7 mbar/ 5 torr |
| Vacuum Controller | : | Manometer |
| Weight | : | 14.5 kg |
